Automated Extraction Machine
$7,000 USD
Description

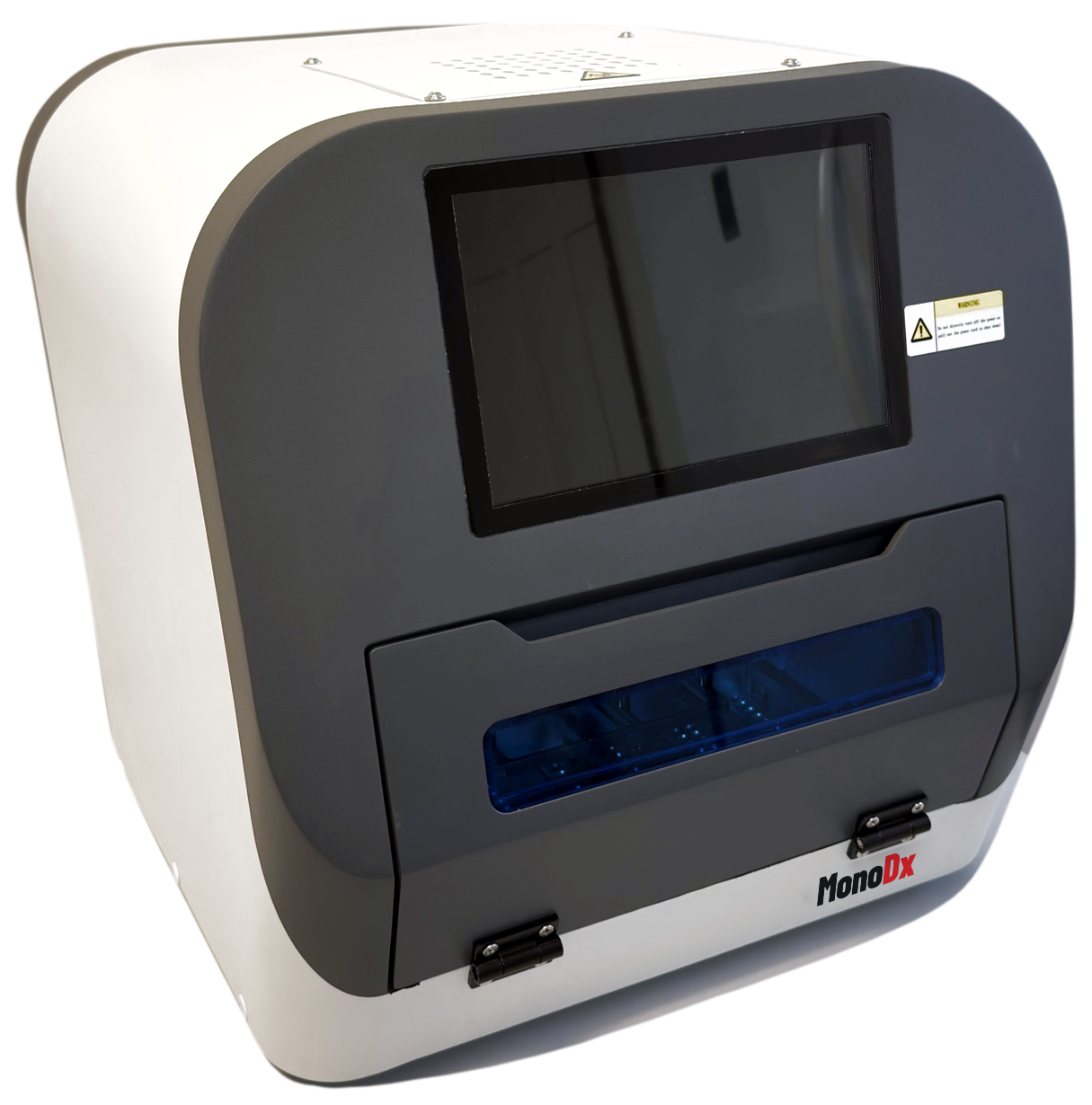

The MonoDx Automated Extraction Machine uses magnetic beads for total nucleic acid extraction (DNA and RNA), with capacity for 32 samples and processing volumes of 20–1,000 µL. Adjustable heating, vertical mixing, and a 10.1-inch capacitive touchscreen support streamlined research laboratory workflows. Extraction time ranges from 15–60 minutes, depending on the protocol.
Specifications
- Extraction Method
- Magnetic Beads
- Sample Capacity
- 32
- Processing Volume
- 20–1,000 µL
- Extraction Time
- 15–60 min
- Magnetic Bead Recovery
- ≥98%
- Extraction Difference Between Wells
- <3%
- Magnetic Rod Flux
- 4,500 Gs
- Temperature Range
- Adjustable heating, room temperature to 100 °C
- Oscillating Mixing
- Vertical mixing; low, medium, and high settings
- Module Station
- 2
- Protection Function
- Startup self-check, power-off protection, high-temperature alarm, over-temperature protection, and motor protection
- Disinfection Method
- 8 W UV lamp
- Illuminating Lamp
- 3.4 W LED lamp
- Operation Interface
- 10.1-inch capacitive touchscreen / Windows system
- Barcode Scanning Function
- Optional external barcode scanner
- Project Storage
- >1,000
- Interface
- 2 USB ports; optional LAN port
- Contamination Control
- Class II HEPA filter to filter internal aerosols and help prevent cross-contamination
- IAP Function
- Online firmware updates
- Power Supply
- AC 100–240 V, 50/60 Hz
- External Size (W × D × H)
- 460 × 470 × 480 mm
- Package Size (W × D × H)
- 538 × 538 × 750 mm
- Gross Weight
- 37 kg
Contact MonoDx for pricing, availability, and technical information.
